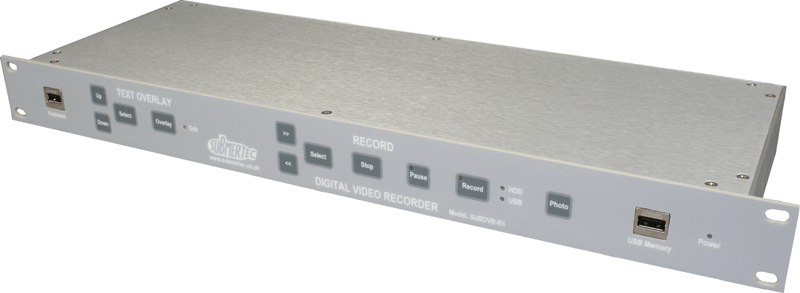

SUBDVR-R1 Rack Mount Digital Video Recorder

Weighing only 1.9 Kg this small and highly portable unit provides reliable Digital recording from an external composite video source.

  • Digital Video Recorder—SSD & USB
  • H264 Video Compression to AVI files
  • Record Still Photos during record or playback
  • Video Text overlay using USB Keyboard
  • Store unlimited pages of text for overlay
  • Date and Time overlay
  • Audio input for Microphone
  • Composite video output
  • Audio output
  • 1U high 19in rack mount only 150mm deep
  • Splash Resistant case

This new Digital Video Recorder developed by Submertec saves up to 100 hours of best quality video and still photo files to the built in Solid State Drive with simultaneous export to USB memory. (up to 700 hours at lower quality).

Menu controls are provided for playback, export from SSD, delete, file name, file number, record quality, date / time format etc. The DVR and Text menu system can be displayed in English or French with other languages as an option. A durable, wipe clean Polycarbonate facia panel has controls, connections etc clearly marked and logically grouped for ease of operation.



Dimensions 1U high, 150mm deep (excl connectors) 19in rack mount
Weight 1.9Kg (4.2lb)
Power Supply 110 to 240 volts AC at 1 Amp (fused 2A)
Connection AC in, Video in & out, Audio in & out, USB memory, USB Keyboard & RJ45 Ethernet
DVR Files Record AVI and JPG files to SSD & USB storage.
DVR Storage Built in 240GB SSD. Option for larger capacity
Outputs Composite video via BNC socket AVI & JPG files to USB (Ethernet option to follow)
